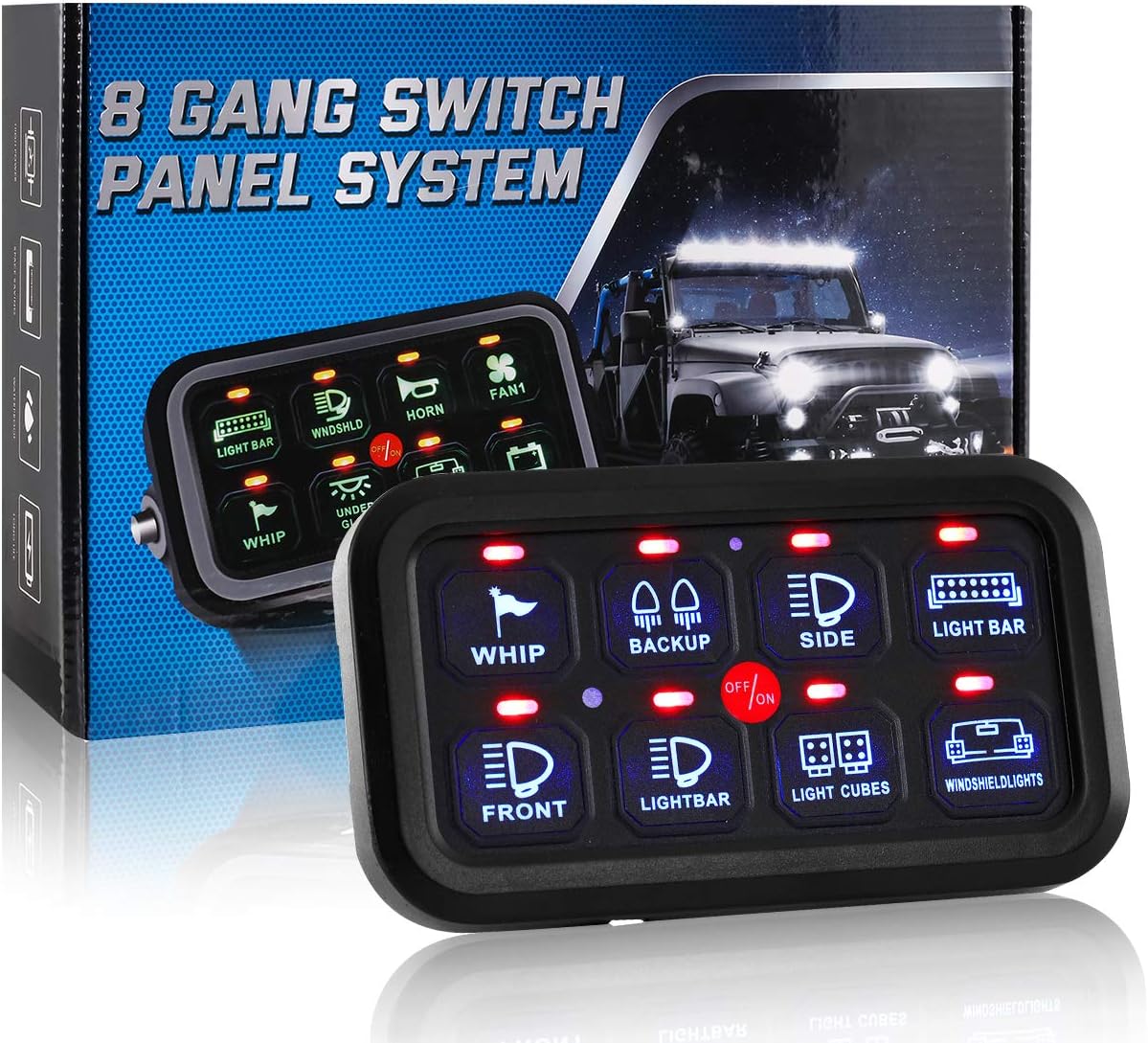

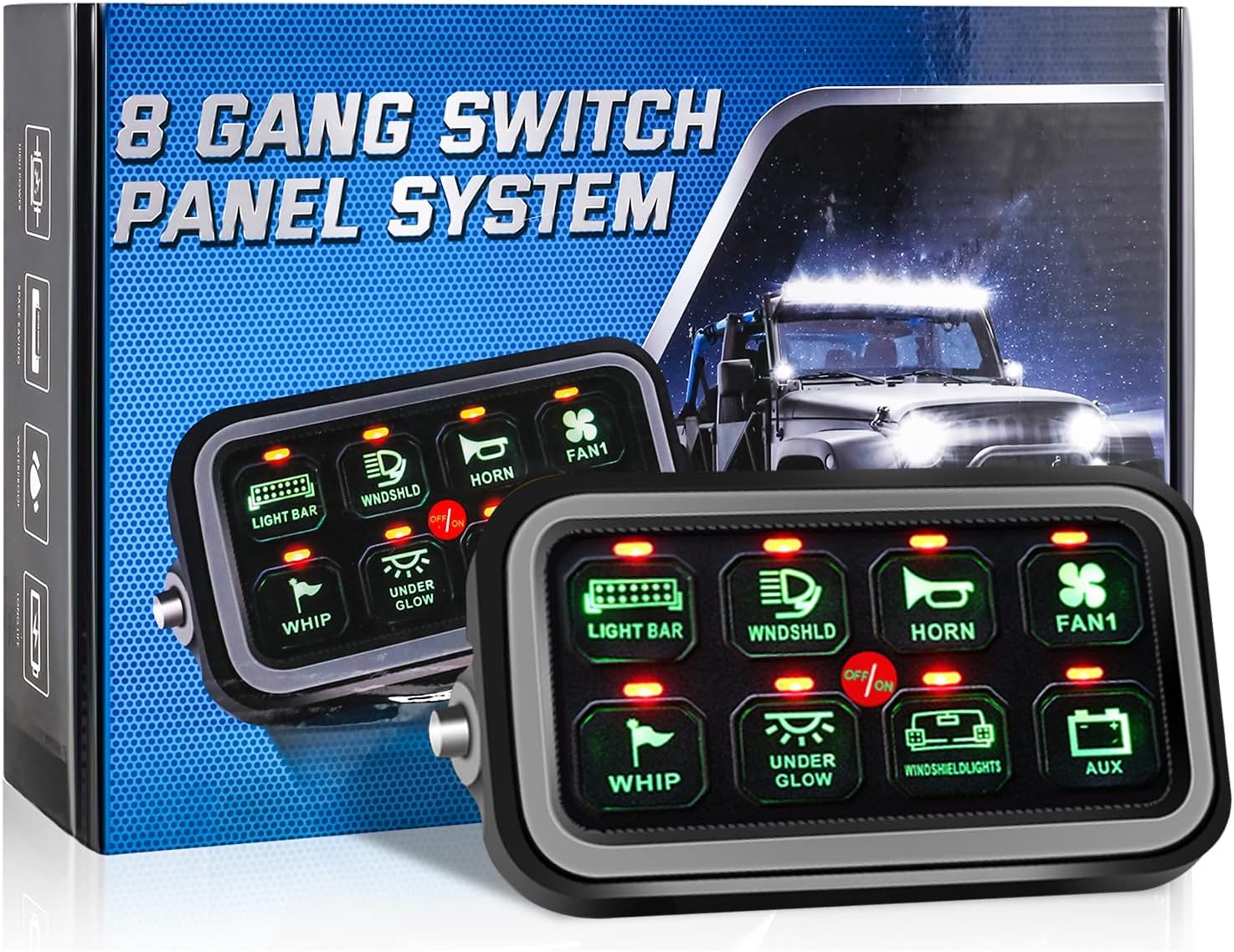

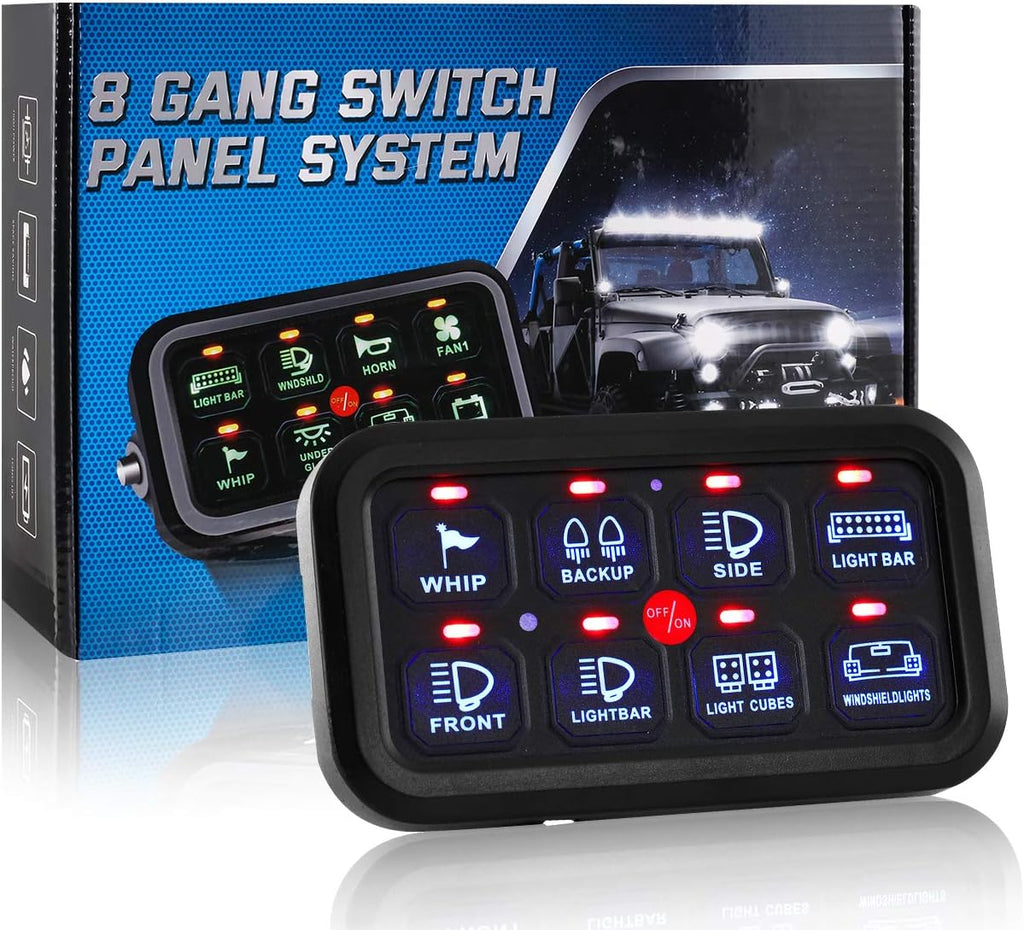

8 Gang LED Switch Panel F460438
Sale price
$27.95
Regular price $106.72
Skip to product information
Input Voltage : 12-24V; DC Voltage : 30A; Rated voltage:12V 20A / 24V 10A; Operating temperature: -25°-80°; Waterproof rating:IP65.

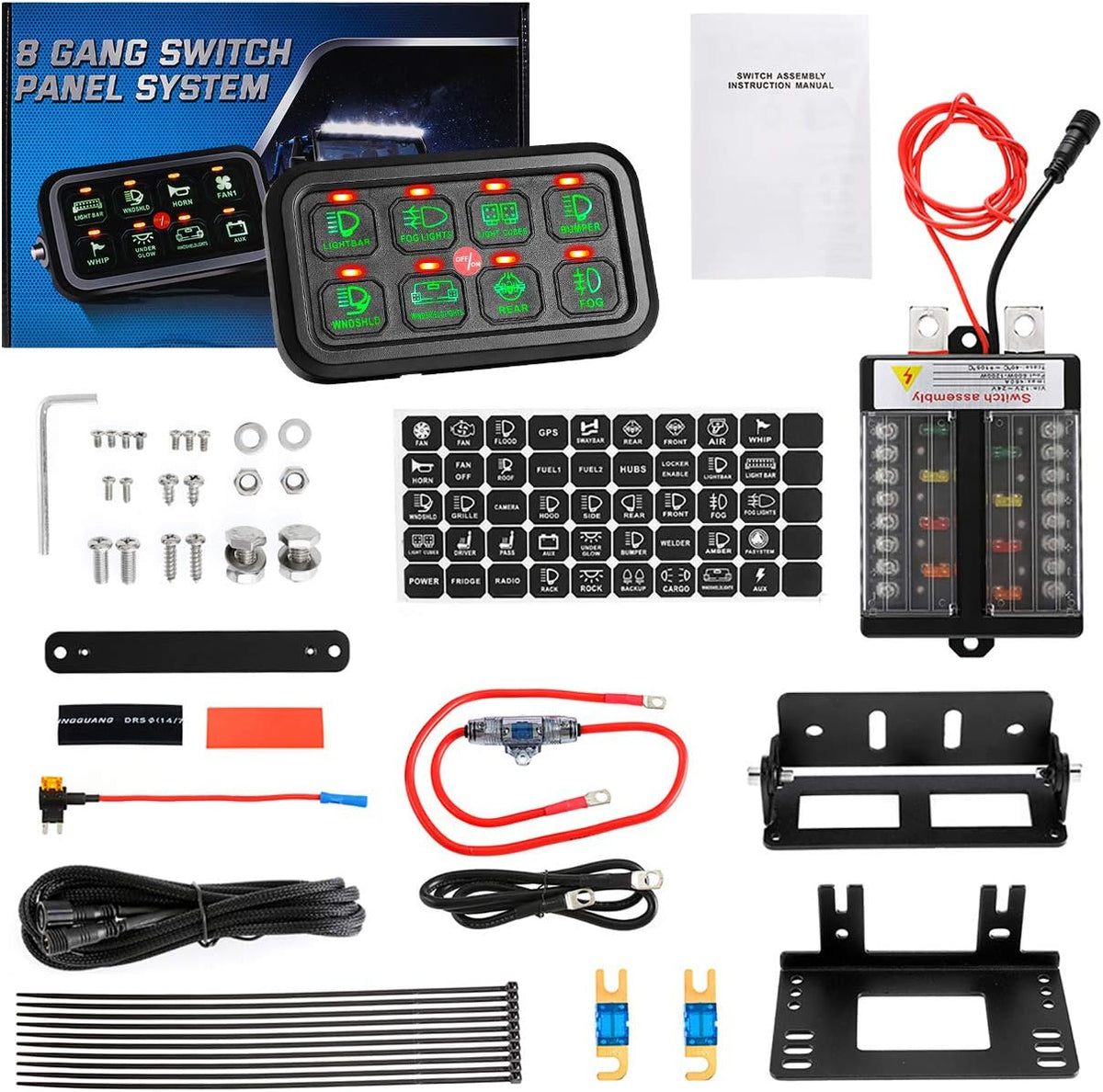

All in one design, no need to buy extra parts. Switch Control Box + 9 Gang Switch Panel + Mounting Brackets + Wiring Harness + Voltage Protection Breaker + Self-Adhesive Label + Screw Sets.
The switch panel can control 8 kinds of led light bar at the same time under 12-24 Volts and a max power rating of 1201 Watts. Adopting Capacitive sensing technology with blue indicator light display, the switch panel has the features of high sensitivity, stability and strong anti-interference ability.
Easy installation: Plug & play wiring harness with plenty of length. Panel installed by bracket, no need to cut a big hole. Labels attach easily, space saving and time saving. Application: Perfectly suitable for off road, powersports, marine, boat, yacht, trailers, bus, heavy duty etc.
Installation Guide: Total power will go to 600w at 12V, 1200W at 24V and the maximum current is 60A. The maximum output current of ground 1 & 2 is 30A, the maximum output current of ground 3-8 is 20A. The recommended connection method is to decrease the current gradually from ground 1 to ground 8.
