High Resolution Audio DAC V724131
High Resolution Audio DAC V724131
Use the high-end ES9038PRO D/A chip of the American ESS company: With the use of ES9311, ESS high-performance DAC dedicated power chip ES9311, the power supply noise is as low as 1uVrms, pushing the performance of ES9038PRO to the limit.
USB uses XMOS XU-208, a true 32bit USB solution, supports DoP and native DSD PCM up to 768kHz, DSD supports up to DSD512.
Low phase noise crystal oscillator and optimized clock processing circuit are used to greatly reduce clock jitter.
All input ports support DSD transmission, coaxial, optical fiber support DoP64;Qualcomm's latest Bluetooth chip supports LDAC 24bit/96kHz, APTX/HD,SBC, AAC.

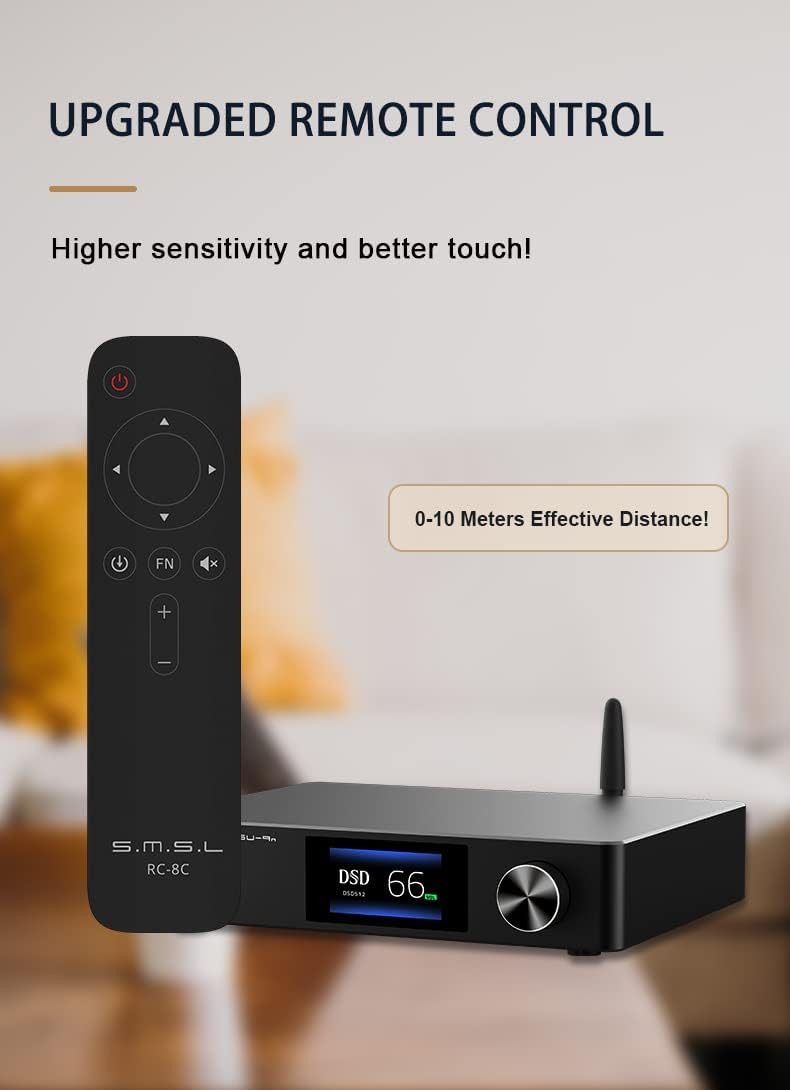

The specially designed discrete component linear stabilized power supply and multiple low-noise stabilized power supplies provide low-noise power supply for analog circuits;Equipped with remote control and full-function remote control.
SPE��
Input:USB/Optical/Coaxial/Bluetooth
Output: RCA /XLR
Output level:
Pre mode:
XLR:4.8Vmms
RCA:2.3Vrms
Fixed mode:
XLR :4.3Vms
RCA: 2.0Vms
THD+N:0.000065%(-123.5dB)
Dynamic range:
XLR:130dB
RCA:123dB
SNR:130dB
Output Impedance:
XLR:207��
RCA:142��
USB transmission:Asynchronization
USB compatibility:Windows7/8/8.1/10/11,MAC OSX,Linux
Bit depth:
USB:1 bit, 16~32bit
Optical/Coaxial:1 bit, 16~24bit
Sampling rate��
USB��
PCM ��44.1~768kHz
DSD ��2.8224~22 5792MHz
Optical/ Coaxial ��
PCM�� 44.1-192kHz
DSD�� DSD64(DoP)
Bluetooth specification:
LDAC��24bit/96kHz (990kbps/660kbps/330kbps)
aptX-HD��24bit/48 kHz_ 576kbps
aptX:16bit/44.1 kHz_ 352kbps
SBC:16bit/44.1 kHz_ 328kbps
AAC :16bit/44.1 kHz_ 320kbps
Consumption:5W
powe:<0.5W
Size:187.5*154*40MM(W*H*D)
Weight:0.79KG
